Numeric Boundaries

Overview

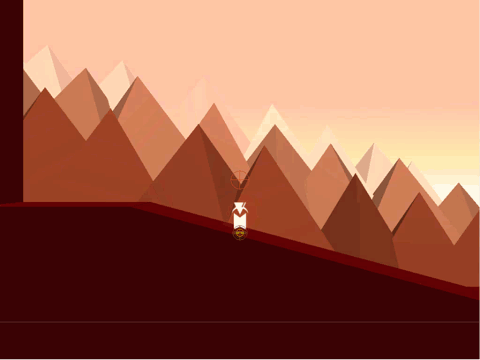

The Numeric Boundaries extension prevents the camera from moving beyond defined limits. This extension is very simple but at the same time quite flexible. You could, for example, use it to animate the left boundary value and make an auto-scrolling level. Since v2.4.0, this extension has the option to enable soft boundaries (also know as smooth edges). This gives an extra polished result to your camera movement when it reaches a stop.

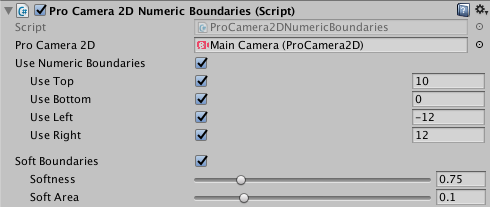

Editor

Parameters:

• Use Numeric Boundaries: If enabled, the camera will be limited by the boundaries defined below
  • Use Top: If enabled, the top border of the camera will be limited by the defined value
  • Use Bottom: If enabled, the bottom border of the camera will be limited by the defined value
  • Use Left: If enabled, the left border of the camera will be limited by the defined value
  • Use Right: If enabled, the right border of the camera will be limited by the defined value
• Soft Boundaries: If enabled, the camera stops will be eased out for smoother results
  • Softness: How smooth should the camera stop be?
  • Soft Area: The distance from the boundary from which the camera will start easing out the movement
